Capacitors
Electroytic Capacitors
Conforms to: EN / IEC 60252-2 Ed. 1.0 / IS 2993
40 / 60 MFD to 200 / 250 MFD
Rated Voltage: 230 V Ac
Surge Voltage: 275 V Ac

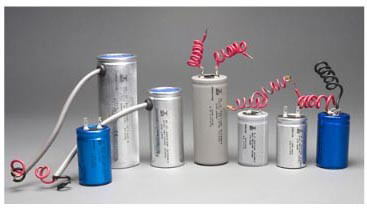

Capacitors with Single Aluminium / Double can are available with PVC wires / Terminals
Construction
Dielectric : Electrolytic grade tissue paper
Elements : Aluminium foil film
Encapsulation : Electrolyte filled
Case : Aluminium cans (as per customers specs)
Formed foil of different values based on requirement along with electrolytic grade tissue paper. Vacuum impregnated in electrolyte, assembled in alumium can. Safety valve is provided on the rubberized bakelite disc. In case of abnormal pressure generated by internal or external heat, safety valve opens and pressure is released.
