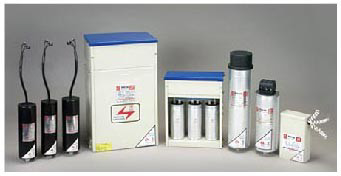

L. T. Power Factor Improvement (Shunt) Capacitors
Conforms to: EN / IEC 60831-1 Consol. Ed. 2.1 / IS 13340
1 KVAR to 25 KVAR up to 500 V ac
Rating above 25 KVAR can also be constructed through Banking.
Construction
Dielectric : Polypropylene
Elements : Metallized polypropylene film
Encapsultion : Dry type resin / liquid resin
Case : Steel cans/Aluminum cans (as per customers specs)
I. Double Dielectric Power Factor Improvement (Shunt) Capacitors
In order to build the correct degree of protection, a capacitor needs to be given a higher current and higher voltage withstanding capacity. This dual consideration has been taken into account to evolve a different construction of capacitors.
Sereis construction is adapted instead of parallel design to achieve the effect of Double Dielectric.
Over and above the normal features of a Mpp capacitor, this desgin provides excellent overcurrent & surge voltage protection.
Types / Designs available
| Sr. No. | Types / Designs | Range |
| 01 | Double Dielectric | 5 to 25 KVAR |
| 02 | Modular | 5 to 25 KVAR |
| 03 | Industrial | |
| a. | Oil Filler | 1 to 25 KVAR |
| b. | Cylindrical with terminal type | 1 to 25 KVAR |
| c. | Cylindrical with wire type | 1 to 25 KVAR |
| d. | Square (Dry) | 1 to 25 KVAR |
| 04 | Agriculture | |
| a. | Round | 1 to 6 KVAR |
| b. | Square | 1 to 6 KVAR |
"Burst proof design in Industrial (Cylindrical with terminal tops) on customers request can also be made available."
Technical Data
| Standards | Reference Standard: IEC 60831-1 Conslo. Ed. 2.1/IS 13340 |
| Rated Voltage | Up to 500 V ac (other voltages on request) |
| Rated Frequency | 50 Hz. (other frequency on request) |
| No. of Phases | 3 (single phase on request) |
| Connection | Delta |
| Permissbile Over Load | Maximum permissible current : 1.2 times of rated Current Maximum permissible Voltage : 1.10 times of rated Voltage |
| Ambient Temp | -10oc to +50oc |
| Total Losses | 0.5 watts / KVAR without resistor |
| Capacitance tolerance | + 10% |
| Tan delta | 0.20% max. |
